Electronic Ignition Conversion Kit
Replaces Points and Condenser-Never Adjust Points or Timing Again!
for
Lucas Distributors
(for 12-volt, negative ground electrical systems only)
The Hot-Spark electronic ignition conversion kit replaces breaker points and condenser in the distributor to provide rock-solid reliability. With the Hot-Spark electronic ignition, dwell and timing are always spot-on accurate.
No matter how strong your engine is, you won't get the most out of it without a good spark. The stock Lucas ignition system used technology that dates back a century-to the Kettering system, which was introduced in the 1910 Cadillac. Even though you can adjust breaker points for near-electronic ignition performance, they will burn and wear within a few thousand miles, long before the recommended replacement interval. With points, the timing will drift; power and fuel economy will suffer.
The Hot-Spark electronic ignition conversion kit delivers a strong spark every time and is maintenance-free. You'll notice quicker starts, more top end power and a little gas mileage boost. It's as easy to install as points and condenser!
Advantages of the Hot-Spark electronic ignition conversion kit:
Replaces points and condenser with solid-state electronics
Set it and forget it - Never adjust points and timing again!
Zero maintenance
Delivers far more voltage to the spark plugs than points-based points
Reliable Hall-effect technology
Never gets out of adjustment
Rock-steady reliability
Dwell and timing are always spot-on accurate
Increased gas mileage, fuel economy
Quick starting
Smooth idling
Cleaner emissions
Longer spark plug life
Longer engine life
Cleaner engine oil due to less unburned fuel
Longer interval between oil changes
Easy to install - If you can install points, you can install the Hot-Spark electronic ignition conversion
No points to wear, burn, pit or corrode
No condenser needed
Absolutely no points float - zero - even at redline RPM and beyond!
Never worry about drifting dwell or timing again
No rubbing parts - nothing to wear out!
Fits completely under the distributor cap
Stealth modification - maintains stock appearance
Includes everything you need, no external ignition box required.
Works with stock distributor and coil
Encased in high-temp thermoplastic - protected from the elements and oil, grease, dirt, water, etc.
Never bother with points or condenser again!
The best investment you'll ever make for your vehicle
Saves precious ($$$) fuel
Coil with 3.0 Ohms or more internal, primary resistance required.
Bosch Black Coil is ideal for 4- and 6-cyl Hot Spark ignition kits.
Requires a 12-volt, negative ground electrical system.
External Ballast Resistor: If the charging system voltage, measured at the coil's + terminal, is more than 13.9 volts at any RPM level, the voltage regulator likely needs replacing or a 1.4 Ohm ballast resistor should be wired between the coil's + terminal and the red HotSpark ignition wire. Too much voltage/amperage can damage the ignition module and other electronic components.
How many miles until the Hot-Spark electronic ignition conversion kit pays for itself? Click here
Measuring Coil Resistance (and more): www.Hot-Spark.com/Coil.htm
HotSpark ignition conversion kits fit only distributors that originally had points and condenser, not electronic ignition.
For Lucas Distributors:
4-cylinder Lucas (22D4, 23D4 and 25D4) -
3LUC4-25D

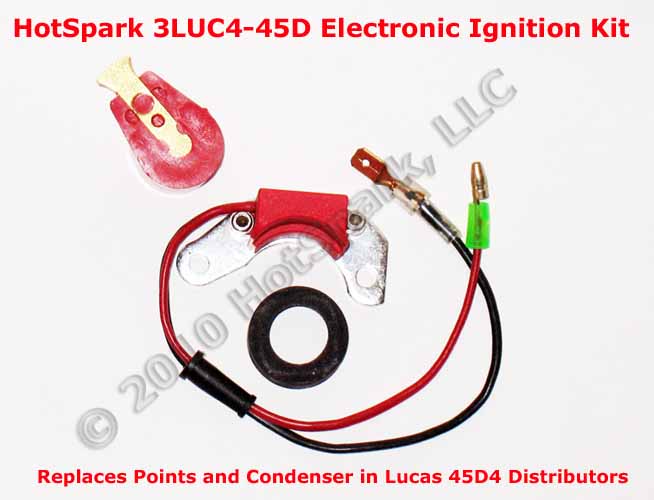

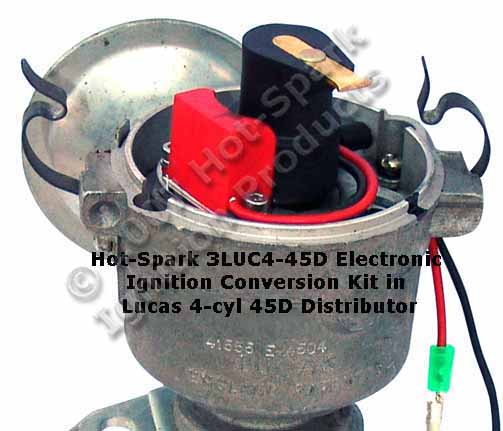

4-cylinder Lucas (43D4, 45D4) - 3LUC4-45D
6-cylinder Lucas (22D6 and 25D6) - 3LUC6-22D
6-cylinder Lucas (45D6) - 3LUC6-45D

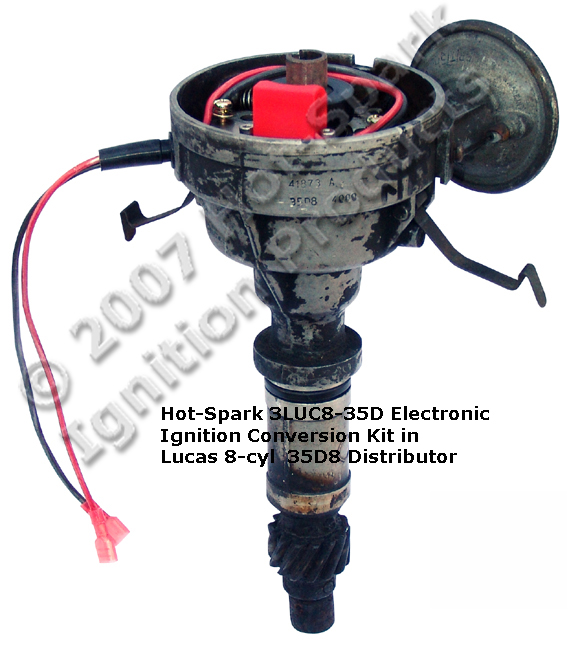

8-cylinder Lucas (35D8 with single points) - 3LUC8-35D
Austin
Austin Healy
1958-71 4-cyl Sprite - Lucas 25D4 - 3LUC4-25D
1958-71 4-cyl Sprite - Lucas 23D4 - 3LUC4-25D
1963-68 6-cyl all models - Lucas 25D6 - 3LUC6-22D
1963-68 3000 Mk3 - Lucas 25D6 distributor - 6-cyl,
CCW, vacuum-advance -
3LUC6-22D
1974-on Lucas 43D6, 45D6 6-cyl, CCW,
centrifugal/vacuum-advance - 3LUC6-45D
1100, 1300, 1800, Allegro, Ambassador, Ital, Marina, Maxi, Metro, Mini, Minor,
Princess, Vanden Plas,
Austin A110, 3-liter, Austin/Morris/Princess 2200, Westminster, Wolseley 6-cyl
and 6/110 - 3LUC6-22D
Aston Martin
1965-73 6-cyl Volante - Lucas 25D6 - 3LUC6-22D
1965-77 6-cyl DB6, DBS - Lucas 25D6 - 3LUC6-22D
1969-74 DB6, DBS6 1969-74 - Lucas 23D6 6-cyl, CCW,
centrifugal-advance - 3LUC6-22D
1969-73 8-cyl DBS - Lucas 35D8 - 3LUC8-35D
Bentley
1969-75 8-cyl
T Series - Lucas 35D8 distributor,
CCW, vacuum-advance - 3LUC8-35D
1973 8-cyl
T Series - Lucas
35D8
distributor, Continental - 3LUC8-35D
Daimler
1969-71 6-cyl all 4.2 models - Lucas 22D6 - 3LUC6-22D
Ford Europe
1956-63 4-cyl Consul - Lucas 25D4 - 3LUC4-25D
1964-66 4-cyl Cortina Lotus -
Lucas
23D4 - 3LUC4-25D
1967 4-cyl Taunus 12M, 15M Bosch - 3BOS4U1
1956-67 4-cyl Anglia - Lucas 25D4 - 3LUC4-25D
1964-70 4-cyl Cortina - Lucas 25D4 - 3LUC4-25D
1968-74 4-cyl Escort 1600cc - Lucas 25D4 - 3LUC4-25D
4-cyl all models - Lucas
43D4 - 3LUC4-45D
All 4-cyl OHV, in-line Engines: (Crossflow, Kent, Valencia)
1967-80 Lucas 25D4 distributor, 4-cyl, CCW, centrifugal-advance - 3LUC4-25D
Hillman
1962-73 4-cyl all models - Lucas 25D4 - 3LUC4-25D
1974-79 4-cyl all models - Lucas 45D4 - 3LUC4-45D
Humber
1962-70 4-cyl Hawk, Sceptre - Lucas25D4 - 3LUC4-25D
1962-67 6-cyl Imperial, Super Snipe - Lucas - 3LUC6-22D
IHC Truck
1957-64 4-cyl all models - Lucas - 3LUC4-25D
Innocenti
(Italy)
1968-73
Mini/Minor/Mini Cooper - Lucas 25D4 distributor, 4-cyl, CCW, vacuum-advance -
3LUC4-25D
1974-on
MkII & III, Mini 90, Mini 120 - Lucas 45D4 distributor, 4-cyl, CCW,
vacuum-advance - 3LUC4-45D
Jaguar/Daimler (See also
Daimler)
1964-74 6-cyl all models - Lucas 22D6 - 3LUC6-22D
1968-69 6-cyl all models - Lucas 25D6 - 3LUC6-22D
British Models:
1968-73 Lucas 22D6 or 25D6 distributor, 6-cyl, CCW, vacuum-advance - 3LUC6-22D
1974-on
XJ6: 3.4, 4.2 & British Models - Lucas 45D6 distributor, 6-cyl, CCW,
vacuum-advance - 3LUC6-45D
Jensen
to 1974
Jensen Healey - Lucas 23D4 & 25D4 distributor, 4-cyl, CCW, vacuum-advance -
3LUC4-25D
CV8, Interceptor, Various Chrysler/Prestolite
distributors, 8-cyl, CW,
centrifugal-advance - 3PRE8U1 / 3PRE8U2
Land Rover
1962-77 Lucas 25D4 distributor, 4-cyl, CCW, vacuum-advance - 3LUC4-25D
1977-89 Lucas 45D4 distributor, 4-cyl, CCW, vacuum-advance - 3LUC4-45D
1966-85 6-Cyl
Engines, all models Lucas 25D6 distributor, 6-cyl, CCW, vacuum-advance -
3LUC6-22D
1970-85 V8 Engine, all models - Lucas 35D8 distributor,
distributor (points-based), 8-cyl,
CW, vacuum-advance - 3LUC8-35D
Leyland-Freight Rover
1965-73
Mini Van - Lucas 23D4, 25D4 distributors, 4-cyl, CCW, vacuum-advance &
centrifugal-advance - 3LUC4-25D
1974-on Lucas 43D4, 45D4 4-cyl, CCW, vacuum-advance - 3LUC4-45D
Marina Van & Pickup, 440 & 575 Van & Pickup Sherpa, Metro Van & Pickup
Lotus
1967-79
Elan, Elan +2, Eclat, Elite, Esprit - Lucas 23D4/25D4 distributor, 4-cyl, CCW,
all models - 3LUC4-25D
1980-83
Eclat, Elite, Esprit - Lucas 43D4 distributor, 4-cyl, CCW,
centrifugal-advance - 3LUC4-45D
Lucas Distributors
22D4, 23D4, 25D4 4-cyl, CCW - 3LUC4-25D
22D6, 23D6, 25D6
6-cyl, CCW - 3LUC6-22D
43D4, 45D4, 54D4, 4-cyl, CCW - 3LUC4-45D
43D6, 45D6, 48D6
- 6-cyl, CCW - 3LUC6-45D
35D8 (Rolls-Royce, Triumph Stag) 8-cyl, CCW (single- or dual-points) - 3LUC8-35D
35D8 (Rover, Morgan, MG, Range Rover) 8-cyl, CW (single- or dual-points) - 3LUC8-35D
MGA, Magnette, Magnette, 1300, Midget, MGA (TC), MGB, MGB GT, MGC, MG Metro - 3LUC4-25D
All 4-cyl MGA twin cam - Lucas 23D4 - 3LUC4-25D
1963-74 4-cyl MGB, Midget - Lucas 25D4 - 3LUC4-25D
1967 4-cyl Midget - Lucas 23D4 - 3LUC4-25D
All 4-cyl all models - Lucas 45D4 - 3LUC4-45D
1963-74 Lucas 23D4 & 25D4 distributor, 4-cyl, CCW, all models - 3LUC4-25D
1974-83 Lucas 43D4, 45D4 distributors, 4-cyl, CCW, all models - 3LUC4-45D
1963-74 Lucas 25D6 distributor, 6-cyl, CCW,
all models - 3LUC6-22D
1968-69 6-cyl MGC - Lucas 25D6 - 3LUC6-22D
MGB GT V8 1973-76 Lucas 35D8 distributor, distributor, 8-cyl, CW,
vacuum-advance - 3LUC8-35D
1975-76 8-cyl MGB V8 - Lucas 35D8 distributor - 3LUC8-35D
Mini Cooper
1965-71 4-cyl Cooper S - Lucas 23D4 - 3LUC4-25D
Morgan
1963-66 Lucas 25D4 distributor, (one-piece points) 4-cyl, CCW,
vacuum-advance - 3LUC4-25D
1969-75
Plus 8 - Lucas 35D8 distributor, (points-based) 8 CW vacuum-advance - 3LUC8-35D
1963-66 4-cyl Plus Four - Lucas 25D4 - 3LUC4-25D
1970-74 8-cyl Plus Eight - Lucas 35D8 - 3LUC8-35D
Morris (See Austin Rover)
1963-74 4-cyl all models - Lucas 25D4 - 3LUC4-25D
1974-75 4-cyl all models - Lucas 45D4 - 3LUC4-45D
Riley
1963-70 4-cyl 1.5-liter Elf, Saloon - Lucas 25D4 - 3LUC4-25D
1967-70 4-cyl Kestrel 1100, 1300 - Lucas 25D4 - 3LUC4-25D
Range Rover
1963-76 4-cyl 2-liter - Lucas 25D4 - 3LUC4-25D
1977-79 4-cyl 2-liter - Lucas 45D4 - 3LUC4-45D
1963-79 6-cyl 3-liter - Lucas 25D6 - 3LUC6-22D
1969-84
all models - Lucas 35D8 distributor, (points-based) 8-cyl,
CW, vacuum-advance - 3LUC8-35D
Reliant
1964-66 Lucas 25D4 distributor, (one-piece points) 4-cyl, CCW, vacuum-advance -
3LUC4-25D
1964-65 SabreSix, Scimitar - Lucas 25D6 distributor, (one-piece points)
6-cyl, CCW, vacuum-advance - 3LUC6-22D
1969-74 Rebel, Regal, Robin - Lucas 25D4 distributor, 4-cyl, CCW,
vacuum-advance - 3LUC4-25D
1974-on Fox, Kitten, Robin, Rialto - Lucas 45D4 distributor, 4-cyl, CCW,
vacuum-advance - 3LUC4-45D
1970-79 Scimitar GTE Motorcraft (not electronic) 6-cyl, CW,
vacuum-advance - 3FOR6U1
Rolls-Royce
1969-76 Corniche, Silver Shadow - Lucas 35D8 distributor (points-based) 8-cyl, CCW,
vacuum-advance - 3LUC8-35D
Singer
1962-63 4-cyl Vogue - Lucas 25D4 - 3LUC4-25D
Sunbeam/Talbot
1966-68 4-cyl Sunbeam Alpine - Lucas 25D4 - 3LUC4-25D
1966-73 4-cyl Sunbeam Rapier - Lucas 25D4 - 3LUC4-25D
1969-73 Avenger, Hunter, Imp, Minx - Lucas 25D4 distributor, 4-cyl, CCW,
vacuum-advance - 3LUC4-25D
1974-76 Sceptre, Rapier - Lucas 45D4 distributor, 4-cyl, CCW,
vacuum-advance - 3LUC4-45D
Triumph
4-Cylinder Models:
1962-67 4-cyl all models - Lucas 25D4 - 3LUC4-25D
1962-67 TR3A,TR4, TR4A - Lucas 25D4 distributor, 4-cyl, CCW
- 3LUC4-25D
1969-73 Herald; 1200, 13/60 - Lucas 25D4 distributor, 4-cyl, CCW,
vacuum-advance - 3LUC4-25D
1974-on Dolomite: 1300, 1500 Toledo, Spitfire 1500 - Lucas 45D4 distributor,
4-cyl, CCW, vacuum-advance - 3LUC4-45D
6-Cylinder Models:
1962-75 6-cyl all models - Lucas
22D6 - 3LUC6-22D
1969-73 GT6, 2000, 2500, 2.5, Vitesse, TR5, TR6 - Lucas 25D6 distributor, 6-cyl, CCW,
vacuum-advance - 3LUC6-22D
1974-on Lucas 45D6 distributor, 6-cyl, CCW, vacuum-advance - 3LUC6-45D
Vanden Plas
1965-68 4-cyl Princess 1100 - Lucas 25D4 - 3LUC4-25D
1968-72 4-cyl Princess 1300 - Lucas 25D4 - 3LUC4-25D
1975 4-cyl Princess 1500 - Lucas 45D4 - 3LUC4-45D
1965-68 6-cyl, 4-liter - Lucas 25D6 - 3LUC6-22D
Wolseley
1958-73 4-cyl all models - Lucas 25D4 - 3LUC4-25D
1974-75 4-cyl all models - Lucas 45D4 - 3LUC4-45D
1964-68 6-cyl 6/110 - Lucas 25D6 - 3LUC6-22D
1962-68 6/110, 1972-75 6-cyl Lucas - 3LUC6-22D
4-cylinder Lucas (43D4, 45D4,
48D4, 59D4) - 3LUC4-45D LUCAS 45D4 distributors: Austin: Allegro 1100, 1000, Mini Van + Pickup 1100, Clubman 1000, 1300 GT, 1800 S, 850 Mini, 1000 Mini, 1100, Innocenti 1000/1001, Relian BMC: Austin 850LC, 998 Mini, 850 Van + Pickup, Austin 1000 Mini, Austin 1800, Austin Maxi 1500, Austin Princess 1300/1800, Austin Allegro 1300HC, Austin 1300 France Morris Marina 1.3/440/575/1.8GT+HL, Morris 1.3, 1800 MKIII, Mini 1275 Leyland Apache Land Rover: 2.25 Leyland: Marina 1.8TC/II GT/HL 1.0, Midget 1500, Toledo 1500 Lotus: Elite, Eclat, Esprit MG: 1300, Midget 1500, B18V Wolseley: 18/22 Reliant: TW9 + E, Robin, Kitten Rootes Group (Chrysler/Dodge/Hillman/Singer/Sunbeam/Talbot): Commer, Carier, Imp, Chamois, Imp Sport, Hunter 1.5/1.7, Rapier 1.7/H120, Alpine, Avenger 1250/1500/1600, Tiger II, Pay Kan 1.7, Vogue, Sceptre Rover: 1800 HC Triumph: Dolomite 1854, Spitfire 1500 4-cylinder Lucas (22D4, 23D4 and 25D4) - 3LUC4-25D Lucas 23D4 distributors:
(without vacuum-advance) |
6-cylinder Lucas (22D6 and 25D6) -
3LUC6-22D LUCAS 22D6 and 25D6 distributors (with single points only): Aston Martin: 1965-73 DB5, DB6, Volante 4.0, DBS, Vantage 4.0 Austin: 1962-68 A110, 1967-69 3.0 Austin-Healey: 1963-71 3000, 3000 MKIII BJ8 BMC: 1972-75 Morris 2200 Daimler: 1966-69 Sovereign 4.2 1969-73 Sovereign 2.8 Ford: 1962-66 Zephyr, Zodiac MKIII 2.5+3.0 Humber: 1966 Super-Snipe, Imperial Jaguar: 1966-69 4.2 MKX, E-Type, 3.4 + 3.8, XJ6 Land Rover: 1962-72 2.6, 3.0 MKII+III, IIB 2.6 MG: 1967-69 C 2,9 Morgen: 1948-50 Plus Four Reliant: 1962-66 Sabre Six, Scimitar Coupe Rover: 1966 3.0 HC MKII+III Triumph: 1963-77 2000, 2500, TR5, TR6, 250, GT6, Vitesse 2.0 + MKII TVR: 2.5, 3.0 Vanden Plas: 1966 Princess 4.0 Wolseley: 1962-68 6/110, 1972-75 Six
8-cylinder Lucas (35D8) - 3LUC8-35D
|
www.Hot-Spark.com/Installing-Hot-Spark-Lucas.pdf
International Buyers – Please Note:
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.
VERY IMPORTANT -- BEFORE ORDERING: Some distributors of vehicles, boats,
etc. may differ, according to whether the stock distributor is still in place or
a replacement distributor has been installed. Some otherwise similar or
identical engines use different distributor brands and/or different distributor
part numbers. We need your distributor's brand name, distributor part number and
number of engine cylinders to ensure that the electronic ignition conversion kit
is correct one for your particular distributor.
If your Lucas distributor part number, normally found on the side of the
distributor body, is not among those listed on the relevant web page, chances
are, the HotSpark ignition conversion kit won't fit your distributor.
It's imperative that we know your distributor's brand name, distributor part
number and the number of cylinders of your engine. You may need to remove the
distributor temporarily, so that you can read the distributor part number from
the side of the distributor body. Usually, the side of your distributor will be
covered with oil and dirt, so you'll need to clean it to find the distributor
brand name and exact part number.
We can guarantee only that each of our ignition kits will fit a distributor with
one of the distributor part numbers listed on its relevant web page. Otherwise,
it likely won't fit. HotSpark ignition kits require a 12-volt, negative ground
(earth) electrical system.
If you order the wrong electronic ignition conversion kit for your distributor,
you'll need to return it to us, via US Postal Service mail within 30 days from
date of purchase. If the ignition kit is in perfect, unused condition, we can
accept it as a retuned item, within 30 days of purchase, and provide a refund to
your PayPal account, less a 20% restocking fee and any international shipping
fees, etc., but only if the ignition kit is in pristine, unused condition. Buyer
is responsible for shipping and other costs to return the product for credit or
exchange.
Easy to Install - Replace Points and Condenser with Solid-State Electronics |
Hot-Spark Electronic Ignition Conversion Kit for 4-cylinder
Lucas 23D4 and 25D4 Distributors with points and condenser
For Distributors:
Lucas 4-cylinder 22D4, 23D4 and 25D4 distributors with
points and condenser Application:
Coil Required:
Coil must have 3.0 Ohms or more primary resistance.
Beru Germany Blue Coil
recommended. In stock:
Available:
|
||||||||||||||
|
Replaces most 4-cylinder, vacuum-advance, points-based Lucas 25D distributors |
Replacement distributor for Lucas 4-cylinder vacuum-advance distributors. Replaces stock Lucas 4-cylinder distributor. Requires vacuum source from carburetor or throttle body. With 3LUC4-25D electronic ignition installed, instead of points/condenser. Everything you need included - no external ignition box required.
|
||||||||||||||
|
Easy to Install - Replace Points and Condenser with Solid-State Electronics |
Hot-Spark Electronic Ignition Conversion Kit for 4-cylinder
45D4 Lucas Distributors with points and condenser
For Distributors:
Lucas 4-cylinder 43D4, 45D4 and 59D4 distributors with
points and condenser Application:
Coil Required:
Coil must have 3.0 Ohms or more primary resistance.
Bosch Black
Coil recommended. In stock:
Available:
|
||||||||||||||
|
Replaces most 4-cylinder, vacuum-advance, points-based Lucas 45D distributors |
Replacement distributor for Lucas 45D4 4-cylinder vacuum-advance distributors. Replaces stock Lucas 4-cylinder 45D4 distributor. Requires vacuum source from carburetor or throttle body. With 3LUC4-45D electronic ignition installed, instead of points/condenser. Everything you need included - no external ignition box required.
|
||||||||||||||
|
Easy to Install - Replace Points and Condenser with Solid-State Electronics |
Hot-Spark Electronic Ignition Conversion Kit for 6-cylinder
22D6 and 25D6 Lucas Distributors with single points and condenser
For Distributors:
Lucas 6-cylinder 22D6 and 25D6 distributors with
single
points and condenser Application:
Coil Required:
Coil must have 3.0 Ohms or more internal primary resistance.
Bosch
Black Coil recommended. In stock:
Available:
|
||||||||||||||
|
Electronic Ignition Conversion Kit for 8-cylinder Lucas 35D8 Distributors with Points and Condenser |
|||||||||||||||
Easy to Install - Replace Points and Condenser with Solid-State Electronics |
Hot-Spark Electronic Ignition Conversion Kit for 8-cylinder
35D8 Lucas Distributors with single points and condenser
For Distributors:
Lucas 8-cylinder 35D8 distributors with
single points and condenser Application:
Coil Required:
Coil must have
1.5 Ohms or more internal, primary resistance. In stock:
Available:
|
||||||||||||||
|
Foreign Orders: Shipping discount available if purchasing multiple items.
We accept credit and debit card payments via
www.PayPal.com .
Credit card orders are handled through PayPal. You do not have to be a PayPal
member to use this free, secure credit card service.
Important: So that we can ship you the correct ignition conversion kit, please
attach a memo with your payment specifying make and model of vehicle, the number
of engine cylinders and the make and part number of distributor and the HotSpark
item number you need.
© 2005-2023 Hot Spark®
